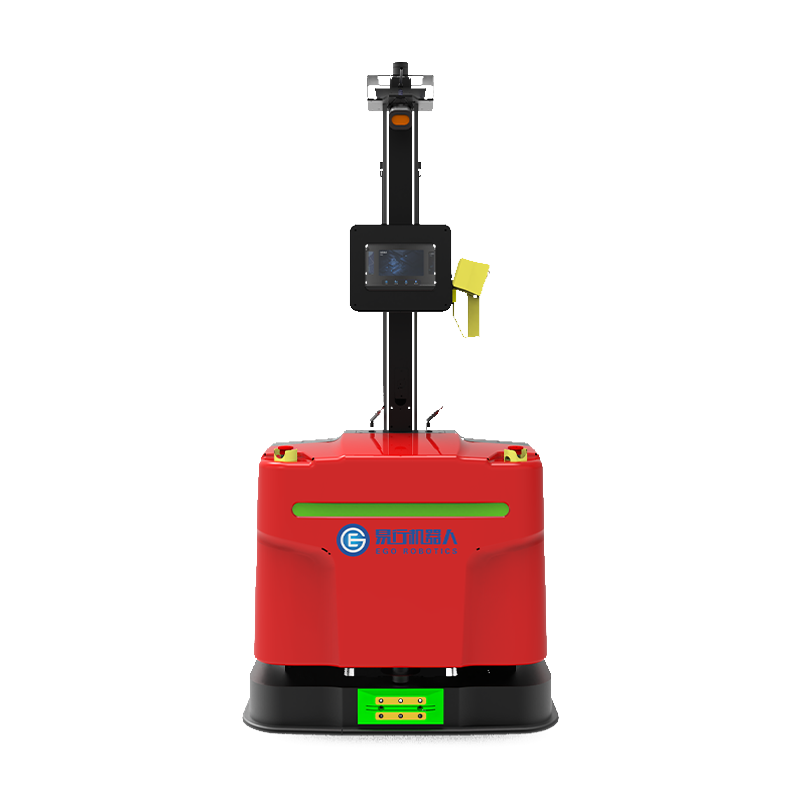

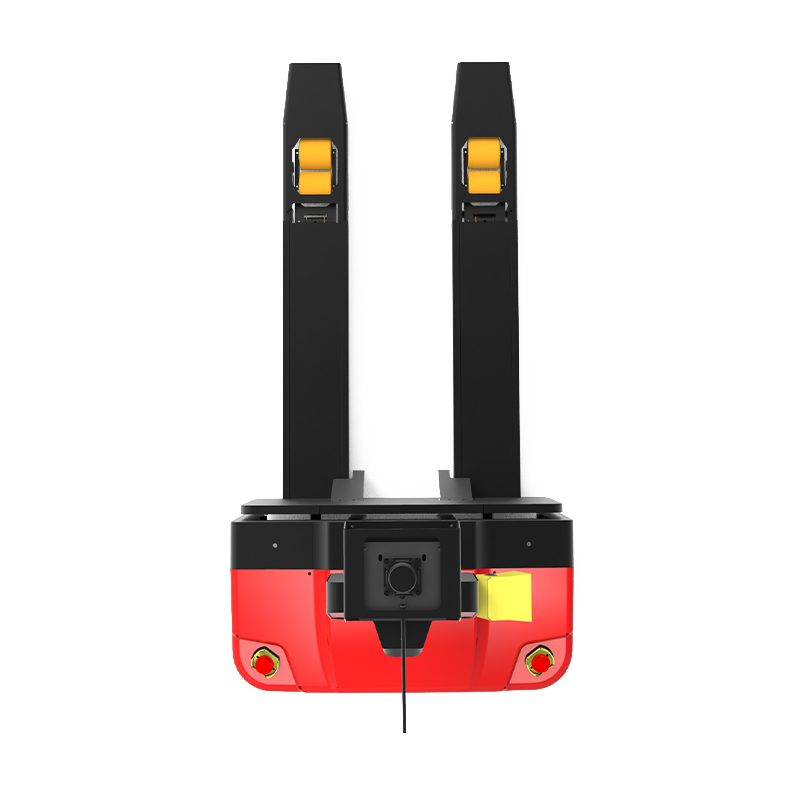

EF2000
Transportable forklift
1. Adopting a self-developed navigation and positioning system, combined with a proprietary AGV motion controller, to achieve a positioning accuracy of ± 10mm; 2. Adopting electric forklifts, installing control boxes, and equipped with multiple safety collision prevention systems including laser collision prevention, mechanical collision prevention, and photoelectric collision prevention, to achieve automatic and safe driving of unmanned forklifts;

Brief introduction:

By using feasible robots such as forklift AGV, AMR robot, scheduling system, warehouse management system, and supporting software and hardware products, intelligent logistics management and transportation of the entire factory can be achieved, including intelligent three-dimensional warehouse, automatic storage and retrieval of three-dimensional warehouse, flat warehouse management and automatic storage and retrieval, line side distribution, automatic loading and unloading, and material turnover. This reduces the participation of material distribution personnel in the production process, improves production efficiency and production management level.

Advantage:

1、Laser navigation, no need to modify the environmen

Compatible with SLAM environment navigation and reflector navigation, flexible combination, suitable for various production environments

2、Multi machine collaborative operation, high efficiency

Scheduling multiple robots for 24-hour collaborative work, automatically assigning tasks based on production needs, and scheduling robots to execute the optimal path

3、Unmanned delivery, safe and stable

Improve production process flow, achieve unmanned operation, avoid errors due to fatigue, and ensure safety and stability

4、Digitalization of production and visual management

Data management of goods and transportation information throughout the entire process, with traceable production

5、Simple operation and low cost

The project deployment is simple, the cycle is short, the maintenance is convenient, the cost is low, and it can be operated across floors and regions, greatly reducing labor costs

6、Fully independently developed and customizable

The entire software and hardware system is completely independently developed, and subsequent upgrades and iterations are simple. It can be customized according to customer needs for functionality.

Customer revenue:

1、Lmprove production efficiency

Automated management of warehouses, distribution of production materials, inbound and outbound of finished products, and turnover of buffer areas, achieving advance stocking and scheduling, and improving overall production efficiency.

2、Cost reduction

Implement unmanned operations, reduce personnel involvement, and lower labor costs.

3、High return rate

The project has a 1-2 year recoverable cost

4、Easy to operate and maintain

The project implementation cycle is 15-30 days, easy to operate, and the subsequent maintenance of the project is simpl

ModelPortable forklift
Basic parametersAppearance dimensions (L * W * H) (mm)1900*800*2000
Self weight (including battery) (kg)750
Load capacity (kg)2000/3000
Standard lifting height (mm)125
Fork size (s/e/l) (customizable) (mm)64/170/1150
Fork outer width (mm)540/680
Height of fork surface above ground (mm)85
PerformanceOperating speed (adjustable in sections) (mm/s)0-1500
Navigation methodSLAM navigation/reflector navigation
Repetitive positioning accuracy (mm)±10
Lifting speed full load/empty load (mm/s)47/65
Descent speed full load/empty load (mm/s)75/70
Minimum turning radius (mm)1627
Maximum climbing gradient with full load/empty load (%)5/8
Sports StyleForward and backward, turn left and right, rotate in place
Minimum channel width (mm)2900
Power batteryLithium battery typeLithium iron phosphate
Battery capacity24V/202AH
Rated operating time (h)6-8
Full charging time (h)2
Safety protection Laser collision avoidanceStandard configuration
Fork tooth detection (photoelectric/ultrasonic)Standard configuration
Mechanical collision preventionStandard configuration
Emergency stop button, sound and light alarm, cargo detectionStandard configuration
Spotlight warningStandard configuration
3D visual recognition trayOptional selection
3D visual collision avoidanceOptional selection
OtherCar display screen13.3-inch touch screen
Operation modeManual/Automatic
Charging modeManual/Automatic
Communication method (roaming)Wireless communication
